Top 5 Common Issues During Hot Tub Installation or Relocation

Moving a 1,000-pound spa is a high-stakes operation where a single misstep can lead to permanent damage. While many homeowners focus on the heavy lifting, the real dangers lie in the technical details, from structural shell stress to complex electrical disconnects.

At Platinum Hot Tub Movers, we specialize in a 'Professional Standard' for hot tub installation & relocation that prioritizes the long-term health of your unit. In this guide, we’ll examine the top 5 common issues encountered during the relocation process and provide the technical protocols required to avoid costly repairs and property damage.

The technical standard: A hot tub or swim spa shell is designed to be supported by its internal frame and a flat, solid base. During transport, the industry standard involves using air-jack systems to lift the unit and spa dollies to distribute the weight. Fiberglass and acrylic shells have a specific "flex tolerance." Exceeding this tolerance during a tilt or lift can result in permanent damage.

How we manage it: At Platinum Hot Tub Movers, we do not use standard automotive jacks or manual tilting, as these methods concentrate pressure on small areas of the shell, leading to "spider cracks" or structural fractures. As a fully insured provider serving the Buford market, we use professional-grade equipment to maintain the structural integrity of the shell throughout the move.

The technical standard: Safety protocols require a complete lockout of the 220V/240V service at the breaker before disconnecting any wiring. Hot tubs typically require a dedicated 50-amp or 60-amp circuit. Handling Ground Fault Circuit Interrupter (GFCI) components incorrectly can result in damage to the control board or pose a risk of electrical fire upon reconnection.

How we manage it: Our team handles the electrical disconnect and can coordinate with local electricians to verify that your new site in Buford meets the required electrical specifications. This includes verifying the wire gauge and ensuring the sub-panel is within the required distance from the spa as per local building codes. For more information on electrical safety standards and energy efficiency, refer to the guidelines provided by Energy.gov.

Before a relocation begins, the destination site must be prepared to handle the weight and technical requirements of a spa. We recommend the following standards for all Buford installations:

• Weight distribution: A reinforced pad prevents the unit from sinking or shifting.
• Durability: Concrete provides a long-term foundation that won't degrade under the 5,000lb+ wet
  weight.
• Level surface: Essential for maintaining even water levels and frame alignment.

If the unit is being placed on a deck, a structural engineer should verify the load-bearing capacity. A filled hot tub can weigh as much as a mid-sized SUV. We verify that the deck's joists and support posts are rated for a load of at least 100-125 pounds per square foot (lbs/sq ft). Note that the 100-125 figure refers to the deck's structural capacity, not the weight of the spa itself, which is significantly higher.

The technical standard: A hot tub base must be level to support the weight of the water, which averages 8.3 lbs per gallon according to industry physics. An unlevel base puts uneven pressure on the frame, which can cause the cabinet to warp or the plumbing to shift.

How we manage it: We perform site-readiness checks for our Buford clients. For homes in newer residential developments, we evaluate soil stability to ensure the concrete pad or reinforced deck is prepared for the total weight of the filled unit. If settling is detected, we provide recommendations for shimming or pad reinforcement before the unit is placed. This is a critical step in any hot tub installation & relocation in Buford.

Geography in Gwinnett County presents specific hurdles. We have managed relocations across the sloped terrain near Lake Lanier and the narrow clearances found in established residential areas throughout Buford.

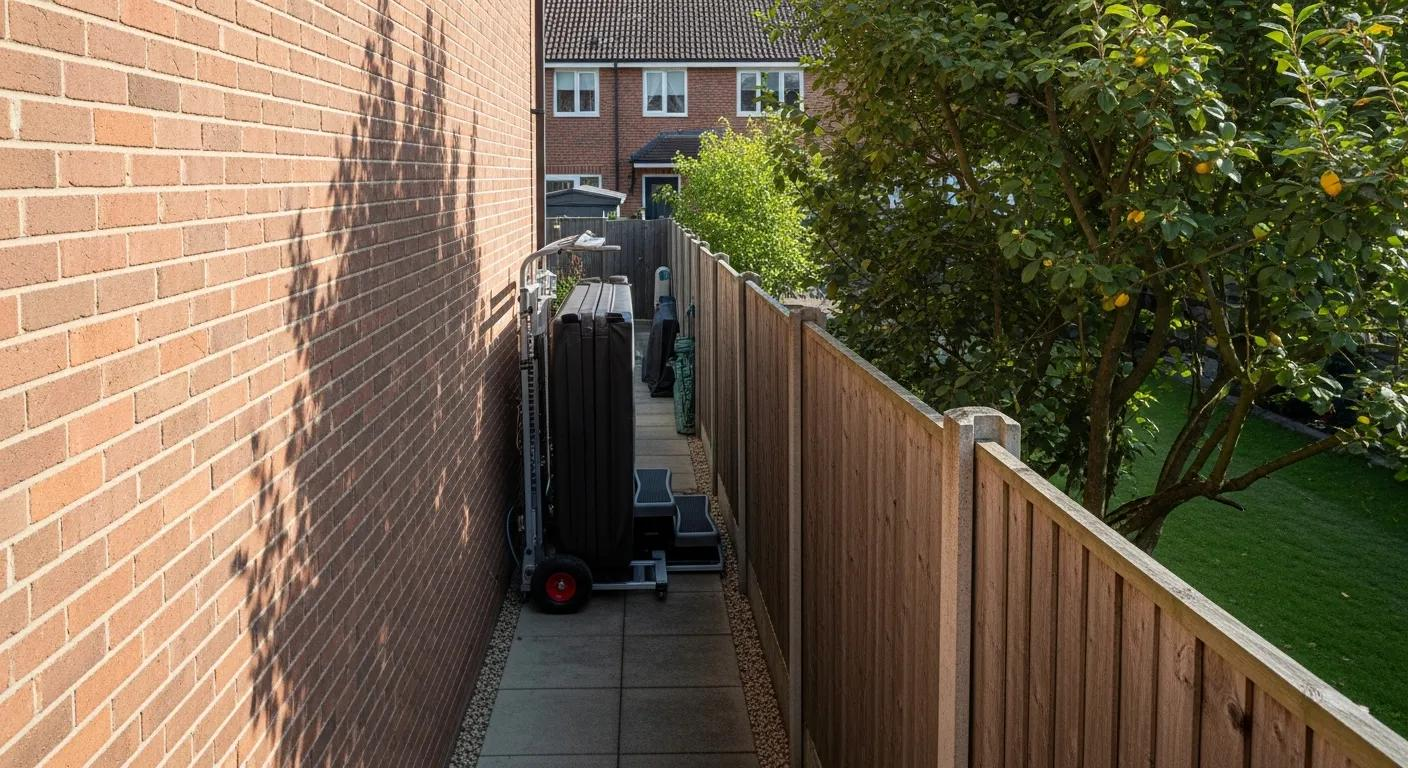

The technical standard: Every relocation requires a mapped route. This includes verifying that gate widths and eave heights accommodate the dimensions of the unit.

How we manage it: We handle fence panel removals and utilize vertical-tilt transport when side-yard clearance is restricted. This prevents contact with the home's siding or the spa cabinet. Our local knowledge of Buford's neighborhood layouts allows us to anticipate these obstacles before the truck arrives.

The technical standard: Moving heavy equipment across a residential yard requires protecting the turf and the home's exterior. This is achieved using plywood paths or turf-protection mats to distribute the weight of the spa dolly and prevent ruts in the lawn.

How we manage it: Our process is designed to be low-impact. We use protective barriers to ensureyour property remains in its original condition after the relocation is complete. This is particularly important in Buford neighborhoods with manicured landscaping or sloped yards where soil displacement is a risk. For complex moves, we recommend using professional hot tub movers who have the right equipment for the job.

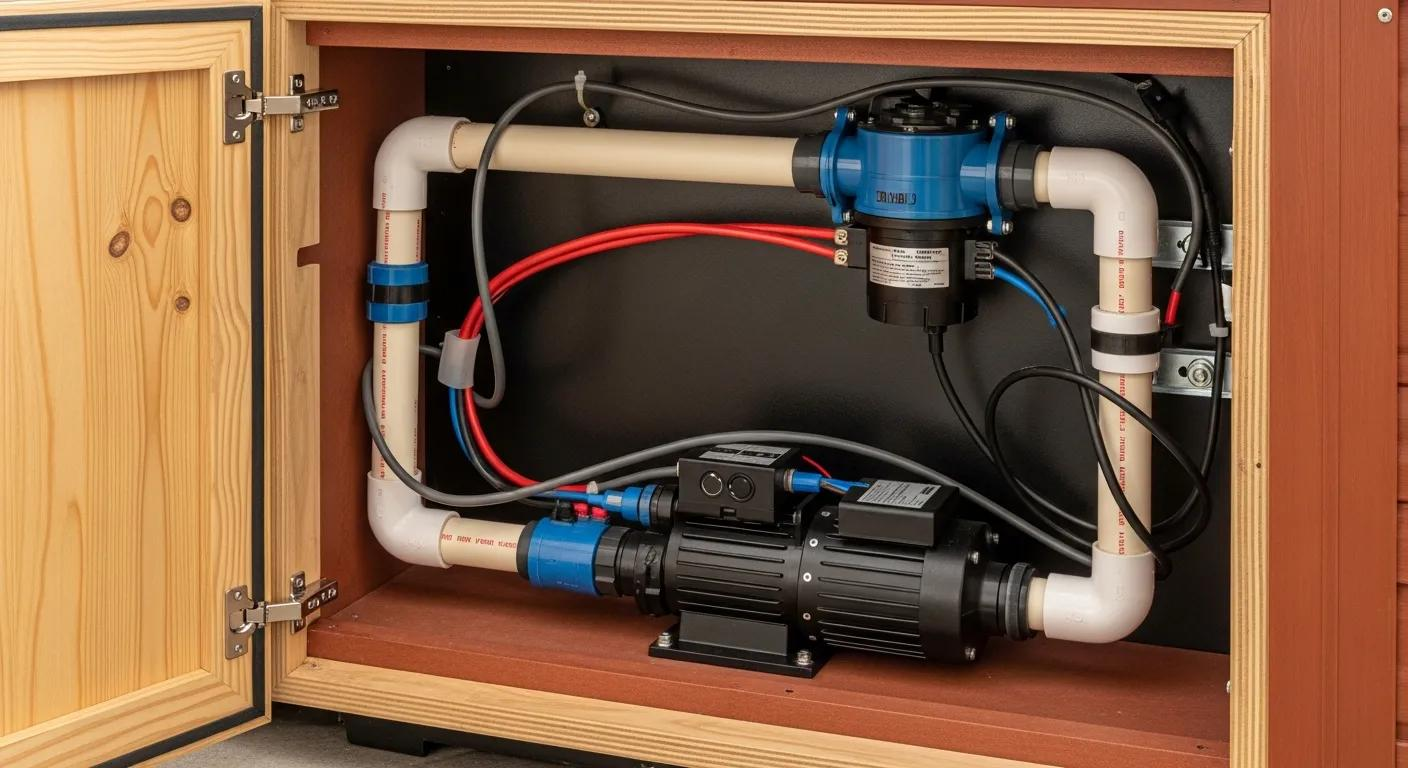

A hot tub is a collection of sensitive mechanical and electronic systems. During a move, each component requires specific protection:

Pumps are heavy and often held in place by plastic unions and vibration-dampening mounts. During transit, these mounts can shear if the unit is subjected to heavy vibration. We verify that all pump mounts are secure before the move.

The electronic control board is sensitive to static and moisture. We ensure the electrical compartment is sealed and that no loose wires are left to chafe against the frame during the journey.

Heater elements are often housed in stainless steel tubes with delicate sensors. We ensure the unit is fully drained to prevent "water hammer" effects inside the heater tube during transport, which can damage the heating element.

The technical standard: Internal pumps and PVC plumbing are subject to vibration during transit. Components must be secured, and long-distance moves should utilize cushioned trailers.

How we manage it: We secure the internal components of hot tubs, swim spas , and saunas. We also provide disposal services for decommissioned units and Spa Valet maintenance plans for new installations.

Once the unit is placed, the relocation process is not complete until the spa is safely
commissioned. This involves:

• Air lock removal: Ensuring no air is trapped in the pumps, which can cause them to burn out upon startup.
• Jet inspection: Verifying that all internal plumbing remained secure during the move.
• Electrical verification: A final check of the GFCI and voltage levels before the homeowner fills the
  unit.

Relocating a spa requires adherence to safety and equipment standards. By identifying these issues early and following a professional protocol, you can mitigate the risks to the equipment and the property.
